NTI Introduces the HDMI Over Gigabit IP Extender

NTI Introduces the HDMI Over Gigabit IP Extender Click to zoom

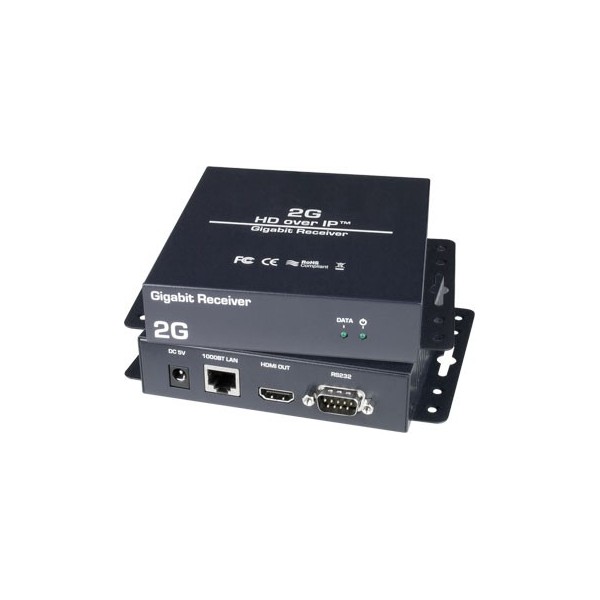

ST-IPHDMI-R-2G (Front & Back)

Aurora, OH: Network Technologies Inc today announced the addition of the HDMI Over Gigabit IP Extender to its popular line of Audio/Video Extenders. The HDMI Over Gigabit IP Extender multicasts digital video and audio signals to one or more receivers up to 333 feet away over a 1000-BaseT Gigabit Network connected via CAT5e/6/7 cable.

Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

The ST-IPDHMI-L/R-2G broadcasts real-time HDMI video/audio to multiple display locations and supports HDTV resolutions to 1080p. Plug-and-Play installation allows receivers to automatically find transmitters on the same network, making the systems easily expandable – simply add remote units as monitors are added. Support for 2-way RS232 commands (control software on a PC, or other automated control system hardware such as Control4 or Creston) enables control of any devices attached to the matrix using RS232.

The unit comes with a customizable EDID table on the local unit and is HDCP compliant. It also supports video wall configurations from 1x2 to 8x8 screens with a built-in control application. One transmitter can connect up to two hundred receivers using cascaded managed network switches. Cascade managed switches up to three levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Receiver options include a Power over Ethernet version, which does not require a power supply at the remote unit.

Optional Matrix Software provides fast and easy switching of video sources, and supports fifty sources, fifty screens, and multiple switches. It includes presets, sequence, and screen group function. The Matrix Software can work as a standalone system or supplement any RS232-based integrated control system. A Video-Wall Add-On for the Matrix Software enables fast switching via drag and drop feature between multiple sources and displays on a fixed video wall size.

Available for immediate sale, the ST-IPHDMI-L-2G Transmitter costs $595, the ST-IPHDMI-R-2G Receiver costs $595, and the ST-IPHDMI-R-2GPOE Receiver with Power over Ethernet costs $695.

For more information, visit:

About Network Technologies Inc
Network Technologies Inc (NTI), established in 1984, is a leading manufacturer of high quality IT and A/V solutions. NTI products (environment monitoring systems, multiviewers, extenders via CAT5, audio/video matrix switches, and KVM switches) are designed, manufactured and tested at the company headquarters in Aurora, Ohio, and are backed by a two-year warranty on all parts and labor. NTI products are used worldwide by leading companies in every industry, including manufacturing, semiconductor, retail, government, education, healthcare, financial services, entertainment, worship, broadcast, and telecommunications. NTI is dedicated to delivering solutions that are of exceptional quality, reliable performance and innovative technology. For more information, visit www.networktechinc.com.
