Rackmount SUN USB KVM Drawer with USB KVM Switch

Control up to 8 USB computers from 1RU of rack space.

Also known as: integrated SUN USB KVM drawer and USB switch, KVM switch in rackmount 1RU KVM drawer, 1RU rackmount LCD monitor SUN USB KVM switch.

Rackmount SUN USB KVM Drawer with VGA USB KVM Switch. How to control of up to eight computers from 1RU of rack space.

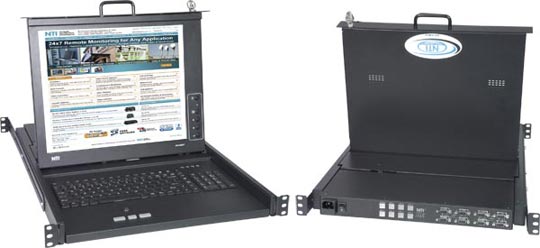

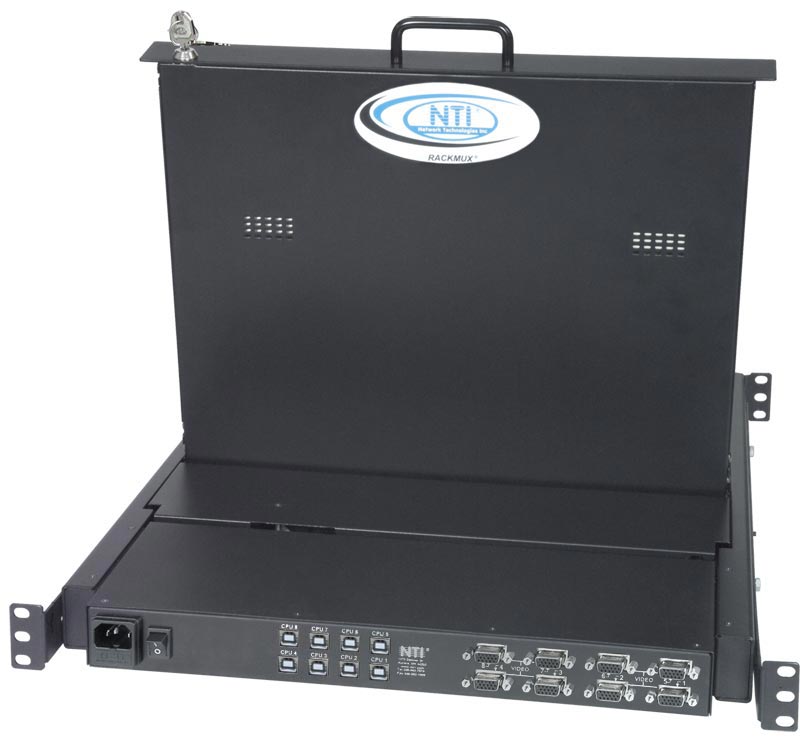

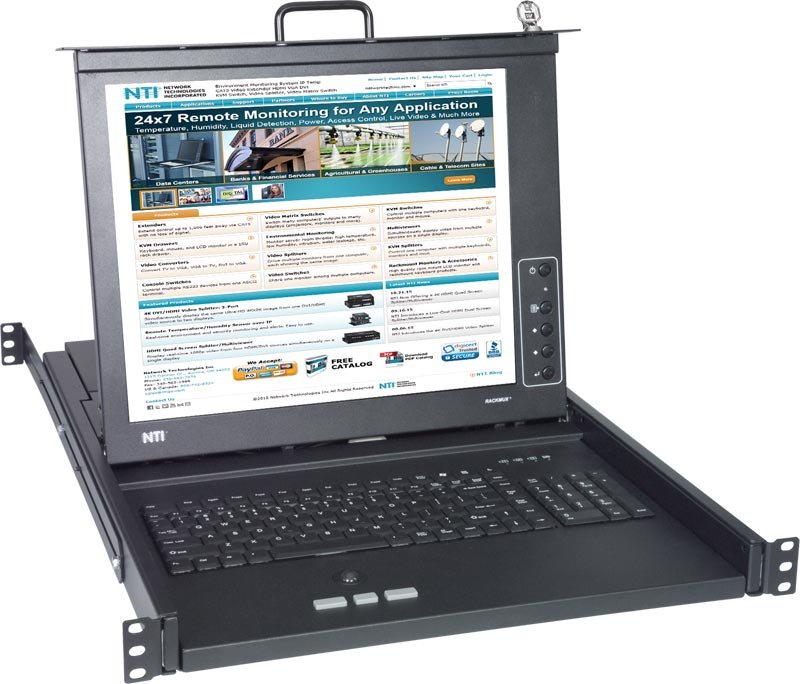

RACKMUX-VS17-NT-8USB (Front & Back)
  • Designed and Manufactured in the U.S.A.

The RACKMUX® SUN USB KVM Drawer with Integrated USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port USB KVM Switch into a space-saving 1RU industrial strength drawer.

The RACKMUX® SUN USB KVM Drawer with Integrated USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port USB KVM Switch into a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17" (432 mm) TFT/LCD VGA monitor.
  • Crisp and clear 1280x1024 video resolution.
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Control up to eight USB computers (PC, SUN, and MAC).
  • Compact, heavy-duty tactile keyboard.
    • Available with 17-key numeric keypad or large padded wrist-rest.
  • Designed to be a one-person job when installing the drawer.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
Power
  • 110 or 220 VAC at 50 or 60 Hz via IEC connector.
  • Power consumption: 45 W
Dimensions
  • WxDxH: 19x23.9x1.75 inches. (483x607x44 millimeters)
    • Handle adds an additional 1.5" to the depth when monitor is in closed position.
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty

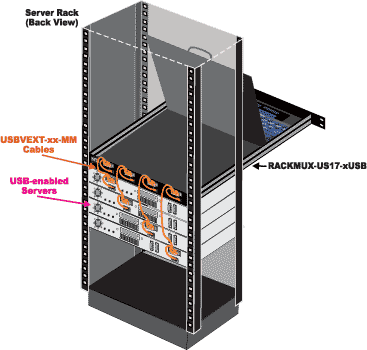

Application Drawings

  • Rackmount SUN USB KVM Drawer with USB KVM Switch
    Rackmount SUN USB KVM Drawer with USB KVM Switch

CAD Drawings

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

Keyboard Layouts

  • RACKMUX-VS17-T-8USB
    Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch
    Rackmount SUN USB KVM Drawer with VGA USB KVM Switch
  • RACKMUX-VS17-NT-8USB
    Rackmount SUN USB KVM Drawer with VGA USB KVM Switch and Numeric Keypad
    Rackmount SUN USB KVM Drawer with VGA USB KVM Switch and Numeric Keypad
  • "The RACKMUX-VS17-N-8USB is a good product that helped us save room in our server rack. Installation ran very smooth. Thank you for the quality product and expedited shipping."

    Adriana Ruiz
    SSA Sistemas Nicaragua SA
    Managua, Nicaragua

SUN USB KVM Drawers with USB KVM Switch

NTI Part # Mouse Keyboard Features # of CPUs Power Cord Length Price Quote Buy
RACKMUX-VS17-T-4USB Trackball Wrist-rest 4 $2,400.00
RACKMUX-VS17-T-8USB Trackball Wrist-rest 8 $2,500.00
RACKMUX-VS17-NT-4USB Trackball Numeric keypad 4 $2,430.00
RACKMUX-VS17-NT-8USB Trackball Numeric keypad 8 $2,530.00

Mounting Bracket for two-post style tele rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for two-post style tele rack $25.00

Male to Male VGA, Male USB A to Male USB B Cable

Larger Image NTI Part # Length (ft.) Price Quote Buy
USBVEXT-6-MM 6 ft $18.00
USBVEXT-10-MM 10 ft $23.00
USBVEXT-15-MM 15 ft $31.00
