Environment Monitoring System Ultrasonic Level Transmitter

Liquid Detection Sensors compatible with ENVIROMUX-2D, ENVIROMUX-5D and ENVIROMUX-16D


Ultrasonic Level Transmitter

Ultrasonic Level Transmitter, 49" Range

ENVIROMUX-ULT Ultrasonic Level Transmitter
ENVIROMUX-ULT

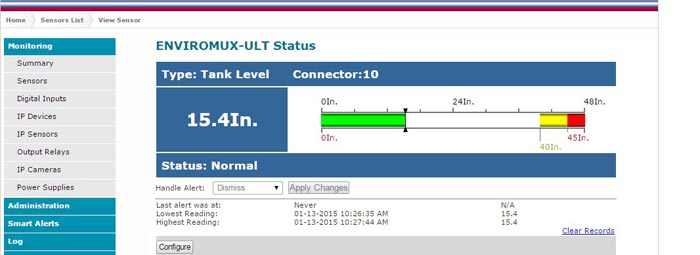

  • ENVIROMUX-ULT - Real-time display of fluid levels
  • General purpose, non-contact ultrasonic level transmitter provides real-time monitoring of fluid levels
    • Updates readings at a minimum rate of 1 second intervals.
  • Compact sensor with 2" (51 mm) dead band and beam width optimized for small tanks 49" (1,245 mm) or less.
  • Provides two-wire 4-20 mA analog output.
  • Includes Fob USB interface tool for configuring the transmitter.
  • Ideal for fluid handling and chemical feed applications integrating process or control automation of small tanks mounted on tools, skids or machines.
  • Requires the ENVIROMUX-S420MA-24V to operate with ENVIROMUX-2D/5D/16D.
    • Maximum cable length: 1000 ft (305m)
    • Powered by ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, cFMus
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
NTI Part # Description Price Quote Buy
ENVIROMUX-ULT Ultrasonic Level Transmitter, 49" Range $560.00
ENVIROMUX-S420MA-24V 4-20mA Sensor Converter $105.00

Intrinsically Safe Ultrasonic Level Transmitter, 25' Range

ENVIROMUX-ULT25IS Intrinsically Safe Ultrasonic Level Transmitter
ENVIROMUX-ULT25IS
  • Calculates distance, level, flow, and volume in linear and non-linear tanks.
  • Suitable for use in hazardous areas - Class 1 Division 1, intrinsically safe rating
  • Operating Range:
    • 1 to 25 ft for liquids
    • 1 to 10 ft. for solids
  • Provides two-wire 4-20 mA analog output.
  • IP65 rated housing
  • Requires the ENVIROMUX-S420MA-24V to operate with ENVIROMUX-2D/5D/16D.
    • Maximum cable length: 1000 ft (305m)
  • Requires an ENVIROMUX-ISZB Intrinsically Safe Barrier when used in hazardous locations.
  • Powered by ENVIROMUX-2D/5D/16D.
Downloads & References
NTI Part # Description Price Quote Buy
ENVIROMUX-ULT25IS Intrinsically Safe Ultrasonic Level Transmitter, 25' Range $1,520
ENVIROMUX-ISZB Zener Barrier – Intrinsically Safe Barrier $495
ENVIROMUX-S420MA-24V 4-20mA Sensor Converter $105
