2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet – No Drivers Required – Multiplatform Support
Extend two USB 3.0/2.0/1.1 devices up to 1,148 feet (350 meters) using a duplex LC singlemode or multimode fiber optic cable
Product Highlights
- Supports USB 3.0/2.0/1.1 devices.
- Choose between singlemode or multimode models.
- No drivers required.
- Compatible with Windows 7/10/11, Linux, MAC OS 10/11/12/13.
Also Available:
1-Port USB 3.0 Fiber Extender – Supports USB 3.0 Only
Additional Images

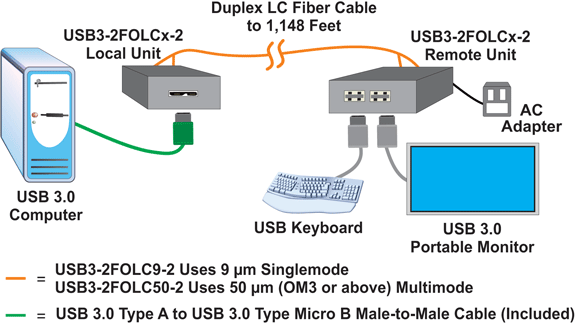

The XTENDEX® 2-Port USB 3.0 Extender via Fiber Optic Cable extends two USB devices up to 1,148 feet (350 meters) using a duplex LC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to two USB 3.0/2.0/1.1 devices. The local and remote units are interconnected via two-strand LC singlemode or multimode fiber optic cable.
The XTENDEX® 2-Port USB 3.0 Extender via Fiber Optic Cable extends two USB devices up to 1,148 feet (350 meters) using a duplex LC singlemode or multimode fiber optic cable. Each extender consists of a local unit that connects to a computer, and a remote unit that connects to two USB 3.0/2.0/1.1 devices. The local and remote units are interconnected via two-strand LC singlemode or multimode fiber optic cable.
- Supports fully transparent USB connection - compatible with USB computers (Windows 7/10/11, Linux, MAC OS 10/11/12/13) and their associated peripherals.
- Signal transmission up to 1,148 feet (350 meters) via a two-strand LC fiber optic cable.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.
- Compliant with USB 3.0 specifications.
- Backwards compatible with USB 2.0/1.1.
- Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices (flash drives, external hard drives, portable monitors, smartphones/tablets with USB 3.0 Type-C port, etc.).
- Supports full 900mA current.
- Supports Plug-n-Play specification.
- Low RFI/EMI for sensitive applications.
- No drivers required.
- Cables can be installed in conduit prior to extender installation.

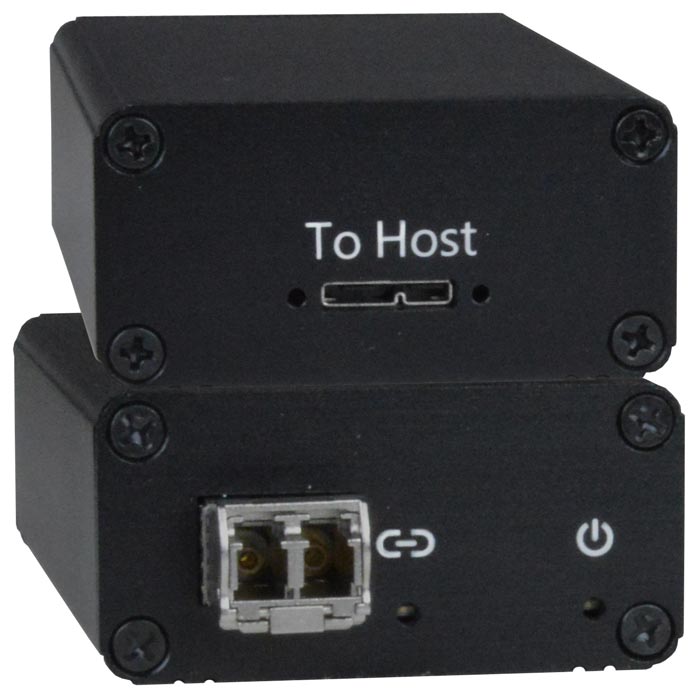

Local Unit
- One female USB 3.0 Type Micro B connector.
- Two female LC fiber optic ports.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.
- The SFP module is not removable; it cannot be replaced with a different SFP module.
- Compatible with USB computers (Windows 7/10/11, Linux, MAC OS 10/11/12/13).

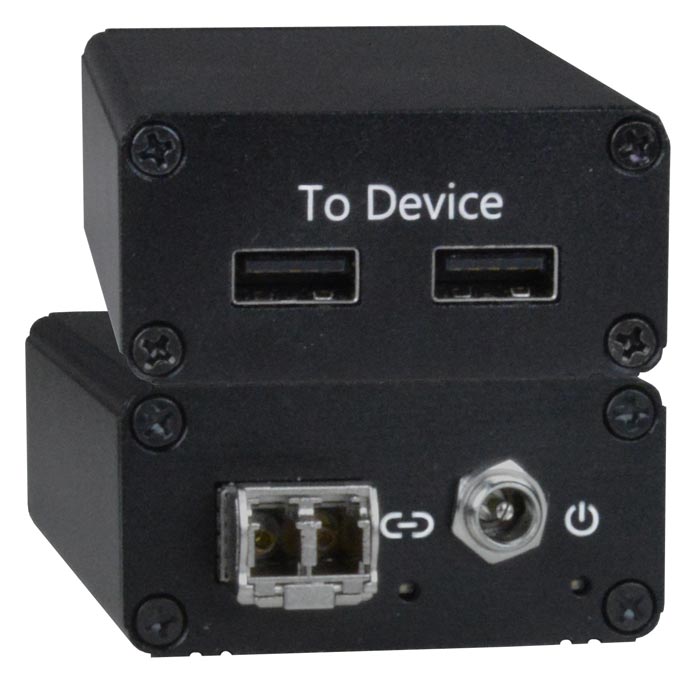

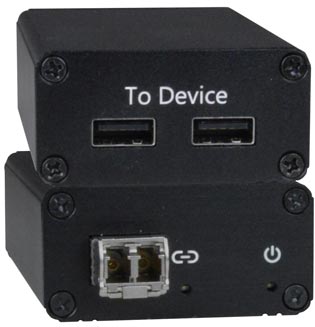

Remote Unit
- Two female USB Type A connectors.
- Supports super-speed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
- Two female LC fiber optic ports.
- USB3-2FOLC9-2: For 9-micron singlemode fiber.
- USB3-2FOLC50-2: For 50-micron OM3 (and above) multimode fiber.
- The SFP module is not removable; it cannot be replaced with a different SFP module.
Power
- Local unit: powered from attached computer.
- Remote unit:
- Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter.
- Output: 5VDC, 3A
- Each USB port supports full 900mA current.
Dimensions
- Local and remote unit WxDxH (in): 2.24x4.13x1.10 (57x105x28 mm).
Environmental
- Operating temperature: 32 to 122°F (0 to 50°C).
- Storage temperature: -4 to 158°F (-20 to 70°C).
- Operating relative humidity: 20 to 80% non-condensing RH.
- Storage relative humidity: 10 to 90% non-condensing RH.
Max Distance
- 1,148 feet (350 meters) over a duplex LC fiber optic cable.
Cables
- USB3-2FOLC9-2: Use a duplex LC 9µm singlemode fiber optic cable to extend the receiver from the transmitter up to 1,148 feet (350 meters). (Cable not included.)
- USB3-2FOLC50-2: Use a duplex LC 50µm OM3 (and above) multimode fiber optic cable to extend the receiver from the transmitter up to 1,148 feet (350 meters). (Cable not included.)
- 1.77 ft (540 mm) male USB 3.0 Type A to male USB 3.0 Type Micro B interface cable included.
Regulatory Approvals
- CE, FCC, RoHS
- TAA compliant
Warranty
- Two years
Package Include
- One transmitter unit
- One receiver unit
- One power supply
- One 1.77 ft (540 mm) USB 3.0 Type A to USB 3.0 Type Micro B cable
User Manual:
- USB3-2FOLC9-2 – Installation and Operation Manual
- USB3-2FOLC50-2 – Installation and Operation Manual
Data Sheet:
CAD Drawing:
-
2-Port USB 3.0 Extender via Two LC Singlemode or Multimode Fiber Optic Cables up to 1,148 Feet
