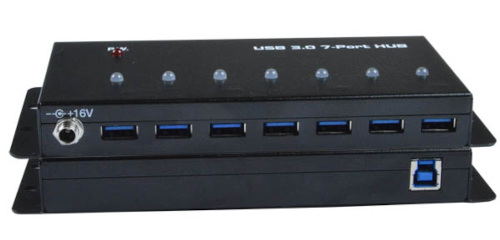

Industrial USB 3.0 Hub, 7 Port

Connect up to seven USB 3.0 SuperSpeed peripheral devices to a PC/MAC in a harsh environment. Features 7 female USB 3.0 Type A connectors & operating temperature to 70°C.

Industrial USB 3.0 Bus-Powered Hub, 7 Port
USB3-HUB-IND-7

The Industrial USB 3.0 7-Port Hub connects up to seven USB 3.0 SuperSpeed peripheral devices to a PC or MAC computer in a harsh environment.

The Industrial USB 3.0 7-Port Hub connects up to seven USB 3.0 SuperSpeed peripheral devices to a PC or MAC computer in a harsh environment.

  • Connect up to seven USB 3.0 self-powered and/or bus-powered USB peripheral devices (security cameras, printers, scanners, touch screen monitors, game controllers, flash drives, keyboards, mice, etc.).
  • Ideal for industrial applications in harsh environments at high temperatures up to 158°F (70°C).
  • Compliant with USB 3.0 SuperSpeed specifications.
    • Backwards compatible with USB 2.0/1.1/1.0
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • Each port supports full 900mA current.
  • Supports Plug-n-Play specification.
  • Hot-swappable.
  • Cascade hubs to connect up to 127 devices.
  • No drivers required.
  • Integrated mounting brackets for easy surface/wall mounting.
  • High quality, rugged steel construction with durable powder coat finish.
Connectors
  • Seven female USB 3.0 Type A connectors.
    • Supports SuperSpeed (5 Gbps), high-speed (480 Mbps), full-speed (12 Mbps), or low-speed (1.5 Mbps) USB devices.
  • One female USB 3.0 Type B connector.
    • Supports USB-enabled computers (PC and MAC).
    • Multiplatform support: Windows 7/8/8.1/10, Linux, and MAC OS 10.7 and higher.
Power
  • Input: 110 to 220 VAC at 50 or 60 Hz via AC adapter (included).
  • Output: 16VDC, 3A
  • Each port supports full 900mA current.
    • Overcurrent protection for each downstream port.
Environmental
  • Operating temperature: 32°F to 158°F (0°C to 70°C).
  • Storage temperature: -13°F to 185°F (-25°C to 85°C).
Dimensions
  • WxDxH (in): 7.28x3.15x0.91 (185x80x23 mm).
Regulatory Approvals
  • CE, FCC, RoHS
Package Includes
  • 7-Port USB 3.0 Hub
  • Power adapter
  • 2.15 ft (655 mm) USB 3.0 Type A male to USB 3.0 Type B male cable.

7 Port USB 3.0 Hub

NTI Part # Description Price Quote Buy
USB3-HUB-IND-7 Industrial USB 3.0 Hub, 7-Port $140.00
