Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

Display video from four HDMI/DVI computers simultaneously on a 1RU DVI LCD KVM drawer. Switch to and control any of the four computers while monitoring the other three connections in real time.

Also known as: rackmount kvm drawer with built-in HDMI multiviewer and USB KVM switch, rackmount DVI USB keyboard monitor drawer, 1RU LCD console drawer, 4-port USB HDMI KVM switch quad splitter

Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

RACKMUX-D17HR-N-SUSBHD4 (Front & Back)

Product Highlights

  • Hi-Res 1920x1200 17.1" LCD
  • Built-in Multiviewer & USB KVM Switch
  • Quad, Picture in Picture, Full Screen, and Custom Display Modes
  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

Additional Images

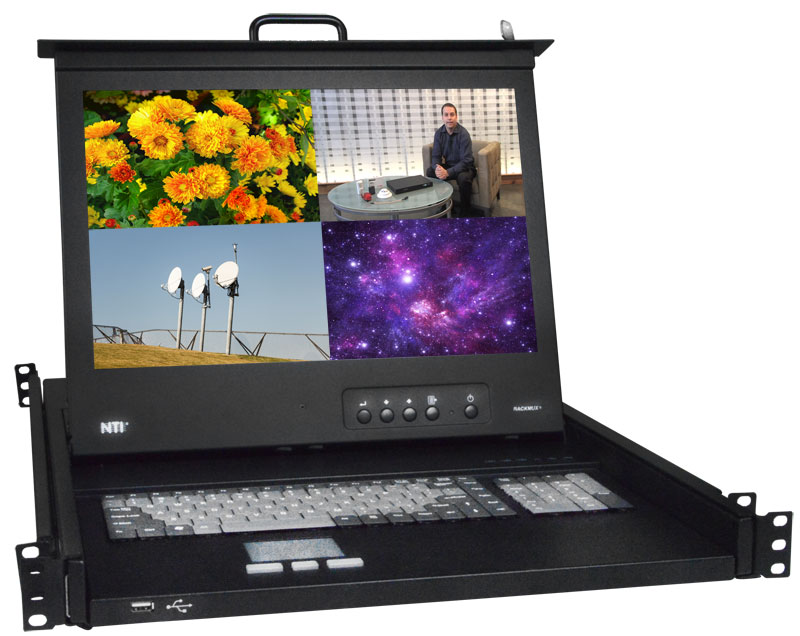

  • RACKMUX-D17HR-N-SUSBHD4 (Front)

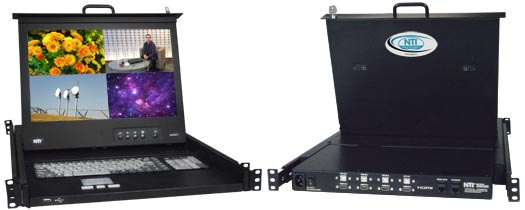

  • RACKMUX-D17HR-N-SUSBHD4 (Back)

The RACKMUX® KVM Drawer with Built-in quad screen multiviewer & USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a Quad Screen Multiviewer with USB KVM switch in a space-saving 1RU industrial strength drawer.

The RACKMUX® KVM Drawer with Built-in quad screen multiviewer & USB KVM Switch combines a rackmount LCD monitor, keyboard, touchpad mouse and a Quad Screen Multiviewer with USB KVM switch in a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17.1" Active Matrix LCD DVI flat panel monitor.
  • Video Resolution: 1920x1200.
  • Integrated HDMI multiviewer and USB KVM switch.
    • Simultaneously display video from four different computers on the KVM drawer's LCD display.
    • Quad, Picture in Picture, Full Screen, and Custom display modes.
  • Control up to 4 USB enabled computers with HDMI/DVI outputs.
  • Any DVI source or display can be connected by using DVI-HD-xx-MM cable (not included).
    • Use DVI-HD-CNVTR DVI + Audio to HDMI Converters to pass and independently switch audio signals to the drawer.
  • Torque-friction hinges - monitor does not wobble, spring, or slam shut.
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Three-button touchpad mouse supports single-finger gestures.
  • Rugged steel construction with durable powder coat finish.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Cable management tray included.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector
Dimensions
  • WxDxH: 19x27.5x1.75 inches. (483x699x44 millimeters)
    • Handle adds an additional 1.5" to the depth when monitor is in closed position.
    • Cable management tray adds an additional 3" to the depth.
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years
Package Includes
  • KVM Drawer
  • IEC Power Cord, country-specific
  • DB9 female to RJ45 female adapter
  • 5-ft CAT5 patch cable
  • Single-person installation mounting kit

Rackmount DVI KVM Drawer Specifications
SPLITMUX Quad Screen Multiviewer with Built-In USB KVM Switch

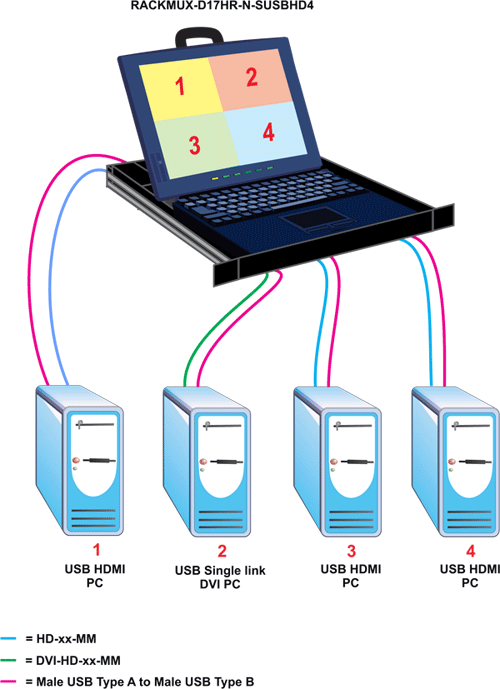

Application Drawings

  • Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch
    Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

Rackmount KVM Drawer with HDMI Multiviewer & USB KVM Switch

NTI Part # Screen Size # of CPUs Video Resolution Price Quote Buy
RACKMUX-D17HR-N-SUSBHD4 17.1" 4 1920x1200 $3,870.00
