SSH Secure Console Serial Switch Sensors

Temperature/Humidity and Water Detection Sensors compatible with SERIMUX-S-x

Temperature/Humidity Sensors

Temperature Sensor

ENVIROMUX-STS - Temperature Sensor
ENVIROMUX-STS
  • Applications from 32°F to 122°F (0°C to 50°C).
  • Accurate to within ±0.9°F (±0.5°C).
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Includes mounting hardware.
  • RJ45 connector.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (not included).
  • Powered by ENVIROMUX-SEMS-16, SERIMUX-S-x, or IPDU-S2.
  • Regulatory approvals: CE, RoHS
  • Compatible with ENVIROMUX-SEMS-16, SERIMUX-S-x, and IPDU-Sx only.
NTI Part # Price Quote Buy
ENVIROMUX-STS $50

Temperature/Humidity Sensor

ENVIROMUX-STHSB Temperature Sensor/Humidity Sensor
ENVIROMUX-STHSB
  • Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±0.90°F (±0.50°C) for -4 to 14°F (-20 to -10°C).
    • ±0.72°F (±0.40°C) for 14 to 185°F (-10 to 85°C).
  • Humidity accuracy:
    • 0 to 80% relative humidity, ±3%
    • 80 to 90% relative humidity, ±4%
  • RJ45 connector.
  • Voltage supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by SERIMUX-S-x
  • Compatible with SERIMUX-S-x.
  • Regulatory approvals: CE, RoHS
NTI Part # Price Quote Buy
ENVIROMUX-STHSB $85.00

Temperature/Wide Range Humidity Sensor

ENVIROMUX-STHS-99 Temperature/Wide Range Humidity Sensor
ENVIROMUX-STHS-99
  • Applications from 32 to 176°F (0 to 80°C)
  • Accurate to within ±2°F (0 to 50°C, ±1°C)
    • 20 to 80% relative humidity, ±3%
    • 10 to 90% relative humidity, ±4%
    • 0 to 99% relative humidity, ±5%
  • Supports dew point measurement.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • RJ45 connector.
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • Powered by SERIMUX-S-x
  • Regulatory approvals: CE, RoHS
NTI Part # Price Quote Buy
ENVIROMUX-STHS-99 $145.00

Back to Top

Rope-Style Leak Detection Sensors

Legacy Liquid Detection Rope Sensor

ENVIROMUX-LDSx-y Liquid Detection Rope Sensor
ENVIROMUX-LDSx-y

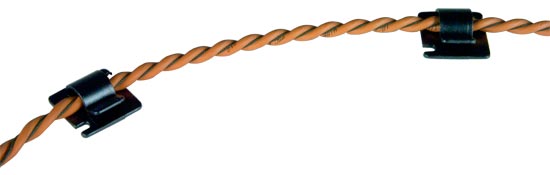

  • Self-Adhesive Clips for Liquid/Chemical Sensor Rope
  • For warning of flooding.
  • Detects liquid depth >0.1" (2.5 mm).
  • Minimum puddle: 0.6" (15 mm) diameter.
  • 100% waterproof electronics.
  • Detects any liquid or moisture, except deionized water.
  • Voltage and current:
    • Open Circuit: 5VDC max @ 1µA.
    • Closed circuit: <300mV @ 10.7mA.
  • RJ45 connector.
  • Voltage Supply: 12VDC
  • Current Consumption: 20mA
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m)
  • Available water sensor cable (x) lengths: 1/10/50/100/200/400/600/800/1000 feet.
  • Plenum rating: CL2P (UL)
  • Available 2-wire cable (y) lengths: 5/10/20/50/100 feet.
  • Powered by SERIMUX-S-x.
  • Regulatory approvals: CE, RoHS
  • Requires the SERIMUX-S-x to operate.
  • Use self-adhesive clips (ENVIROMUX-CLP10-LD) to prevent sensor rope cable from shifing after installation
    • ENVIROMUX-CLP10-LD includes 10 clips
  • $9.00 Per Foot
  • No Additional Cost

$51 + $9 per foot of Water Sensor Cable

NTI Part # Price Buy
ENVIROMUX-LDSx-y $60.00

NTI Part # Price Quote Buy
ENVIROMUX-CLP10-LD $7.15

Back to Top
