Environment Monitoring System USB Modems
Alert & Communication Accessories compatible with ENVIROMUX® E-2D, E-5D and E-16D
Modems
USB 3G Modem
E-3GU-4
- Sends SMS text messages to a pager or cell phone when a sensor goes out of range of a configurable threshold.
- Use to access the ENVIROMUX web interface.
- The SIM card must have a "public" IP address for full control of the
E-2D/5D/16 through the modem.
- The SIM card must have a "public" IP address for full control of the
- SIM card supporting SMS messaging required (not included).
- Supports third generation (3G) digital cellular standards.
- USB 2.0 stick with Male USB Type A connector
- 3G network band: HSPA+/HSUPA/HSDPA/HSPA/UMTS(WCDMA)-2100 MHz.
- 2G network band: GSM/GPRS/EDGE-850/900/1800/1900 MHz
- When connected to the ENVIROMUX system, protrudes 2.68" from the edge of the case.
- Compatible with E-2D/5D/16D.
- Not compatible with E-SEMS-16U.
- Will ship with either a white or black case.
- Regulatory approvals: CE, RoHS
Downloads & References
USB 4G Modem
E-4GU-x
- Sends SMS text messages to a pager or cell phone when a sensor goes out of range of a configurable threshold.
- SIM card supporting SMS messaging required (not included).
- Supports fourth generation (4G) digital cellular standards.
- USB 2.0 stick with Male USB Type A connector
- Two CRC-9 ports for external antennas (sold separately, part # E-ANT2-4GU).
- Use E-ANT2-4GU to increase the signal strength of the 4G network.
- E-4GU-1
- 4G LTE network band: 1/2/4/5/7/28
- 4G frequencies: FDD 700/850/1700/1900/2100/2600 MHz
- 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 850/1700/1900/2100MHz
- 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
- E-4GU-3
- 4G LTE network band: 1/3/7/8/28/40
- 4G frequencies: FDD 700/900/1800/2100/2600 MHz, TDD 2300 MHz
- 3G network band: WCDMA(UMTS) DC-HSPA+/HSPA+/HSPA/UMTS 900/2100MHz
- 2G network band: GSM/GPRS/EDGE 850/900/1800/1900 MHz
- When connected to the ENVIROMUX system, protrudes 2.88" from the edge of the case.
- Compatible with E-2D/5D/16D operating firmware revision 2.60 or newer.
- Regulatory approvals: CE, RoHS,
- E-4GU-1: FCC
- Will ship with either a white or black case.
Downloads & References
To select the correct model, contact your mobile carrier BEFORE ORDERING to determine what band(s) must be supported by the modem for your area.
USB 4G WiFi Modem
E-4GU-5
- Sends SMS text messages to a pager or cell phone when a sensor goes out of range of a configurable threshold.
- SIM card supporting SMS messaging required (not included).
- Supports fourth generation (4G) digital cellular standards.
- USB 2.0 stick with Male USB Type A connector
- Two CRC-9 ports for external antennas (sold separately, part # E-ANT2-4GU).
- Use E-ANT2-4GU to increase the signal strength of the 4G network.
- 4G LTE network band: 1/3/7/8/20
- 4G frequencies: FDD 800/900/1800/2100/2600 MHz
- 3G network band: UMTS: 900/2100 MHz
- 2G network band: GSM:850/900/1800/1900 MHz
- WiFi access point - supports up to 10 WiFi users
- When connected to the ENVIROMUX system, protrudes 3.07" from the edge of the case.
- Compatible with E-2D/5D/16D operating firmware revision 3.8 or newer.
- Regulatory approvals: CE, RoHS
Downloads & References
Contact your mobile carrier BEFORE ORDERING to determine what band(s) must be supported by the modem for your area.

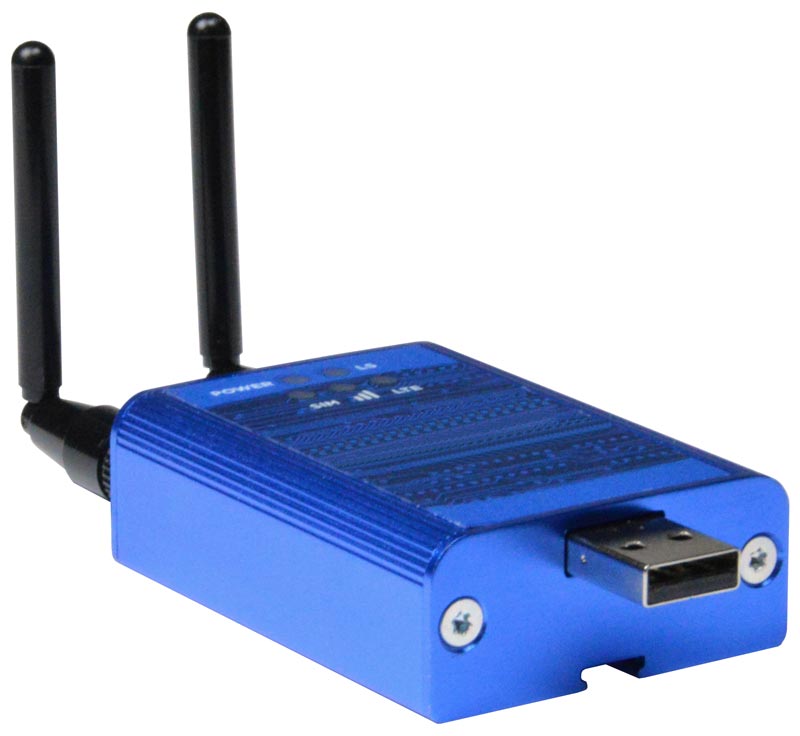

USB 4G Modem, TAA Compliant
E-4GU-6
- Sends SMS text messages to a cell phone or pager when a sensor goes out of range of a configurable threshold.
- Micro SIM card supporting SMS messaging required (not included).
- Supports fourth generation (4G) digital cellular standards.
- USB 2.0 stick with Male USB Type A connector
- Two female 50-ohm SMA connectors for external antennas (included)..
- Use the included antennas to increase the signal strength of the 4G network.
- 4G LTE network band: 1/2/3/4/5/7/8/12/18/19/20/25/26/28/38/39/40/41
- 4G frequencies: FDD 700/800/850/900/1700/1800/1900/2100/2300/2500/2600 MHz, TDD 1880/2300/2496/2570 Mhz
- 3G frequencies: UMTS 800/850/900/1700/1900/2100 MHz
- 2G frequencies: GSM 850/900/1800/1900 MHz
- When connected to the ENVIROMUX system (with antennas attached), protrudes 3.68" from the edge of the case.
- Compatible with E-2D/5D/16D operating firmware revision 4.4 or newer.
- Regulatory approvals: CE, FCC, UL, RoHS
- TAA compliant.
Downloads & References
Contact your mobile carrier BEFORE ORDERING to determine what band(s) must be supported by the modem for your area.
