Environment Monitoring System Alarm Beacons

Alert & Communications Accessories Compatible with ENVIROMUX® E-MINI-LXO &
PWR-RMT-RBT-C13

Alarm Beacons

Alarm Beacon with Power Supply – Small: 2.75x1.69 in (70x43 mm)

E-BCN-RP Alarm Beacon - Small
E-BCN-RP
  • Emits flashing red light when activated
  • Flash Rate: 90 per minute
  • 2-wire interface
  • Input voltage: 12VDC
  • Power consumption: 3W
  • Maximum cable length: 500 ft (152 m)
  • Dimensions WxH: 2.75x1.69 in (70x43 mm)
  • Includes 12V/1A country-specific power supply.
  • Material: ABS resin base, polycarbonate/acrylic lens
  • Compatible with E-MINI-LXO and PWR-RMT-RBT-C13.
  • Operating temperature: -22 to 140°F (-30 to 60°C)
  • Regulatory approvals: RoHS
Downloads & References
NTI Part # Price Quote Buy
E-BCN-RP $45.00

Alarm Beacon with Power Supply – Large: 3.94x3.46 in (100x88 mm)

E-BCN-RLP Alarm Beacon - Large
E-BCN-RLP
  • Emits flashing red light when activated
  • Flash Rate: 75 per minute
  • 2-wire interface
  • Input voltage: 12VDC
  • Power consumption: 10W
  • Maximum cable length: 500 ft (152 m)
  • Dimensions WxH: 3.94x3.46 in (100x88 mm)
  • Includes 12V/1A country-specific power supply.
  • Material: ABS resin base, polycarbonate/acrylic lens
  • Compatible with E-MINI-LXO and PWR-RMT-RBT-C13.
  • Operating temperature: -22 to 140°F (-30 to 60°C)
  • Regulatory approvals: RoHS
NTI Part # Price Quote Buy
E-BCN-RLP $78.00

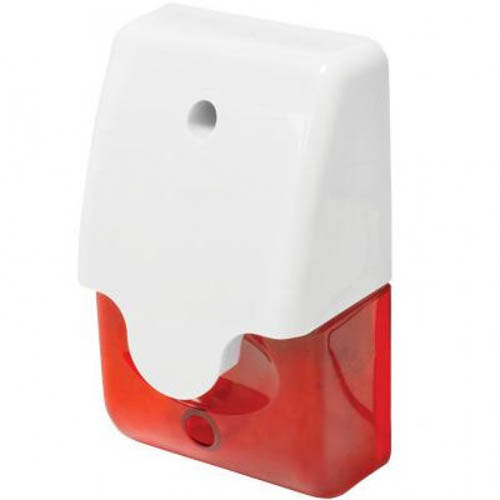

IP65 Indoor/Outdoor Piezo Siren with LED Strobe Beacon, 110 dB, Powered

IP65 Indoor/Outdoor Piezo Siren with LED Strobe Beacon, 110 dB
E-SRN-BCNx-OP
  • IP65 Indoor/Outdoor Piezo Siren with LED Strobe Beacon, 110 dB, Red
  • Simultaneously emits a loud continuous tone and a flashing LED strobe light to deter intruders or alert personnel.
  • Available with a red or blue lens.
  • Beacon flash rate: 300 per minute.
  • Piezo siren output level: 110 dB at 1 foot.
  • Weatherproof enclosure.
    • IP65-rated water and dust protection.
  • Mounts in single-gang box or surface-mount (2 mounting screws included).
  • 2-wire interface.
  • Maximum cable length: 1,000 ft (304.8 m)
  • Operating temperature: -13 to 131°F (-25 to 55°C).
  • Dimensions (WxDxH): 2.91x1.97x4.84 in (74x50x123 mm)
  • Input voltage: 6 to 15 VDC
  • Current consumption: 90mA @ 12VDC
  • Includes 12V/1A country-specific power supply.
  • Compatible with E-MINI-LXO and PWR-RMT-RBT-C13.
Downloads & References
NTI Part # Color Price Quote Buy
E-SRN-BCNL-OP Blue $44.00
E-SRN-BCNR-OP Red $44.00
