4K DVI/HDMI Video Splitter

Simultaneously display the same Ultra-HD 4Kx2K image from one DVI/HDMI video source to two displays.

Also known as: 4K video splitter, UHD DVI HDMI distribution amplifier, multiple 4Kx2K monitors one video source, video port expander.

VOPEX-DVI4K-2
  • Designed and Manufactured in the U.S.A.

Additional Images

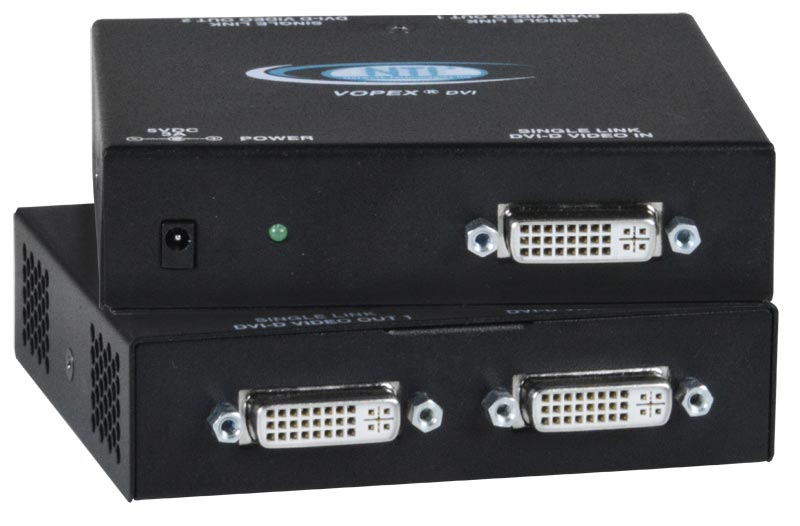

  • VOPEX-DVI4K-2 – 4K DVI/HDMI Video Splitter

The VOPEX® DVI/HDMI 4K Video Splitter simultaneously displays the same Ultra-HD 4Kx2K image from one single link DVI/HDMI video source to two displays.

The VOPEX® DVI/HDMI 4K Video Splitter simultaneously displays the same Ultra-HD 4Kx2K image from one single link DVI/HDMI video source to two displays.

  • Supports DVI interface for crisp and clear video quality on flat panel displays.
  • Passes HDMI audio and video signal through DVI-I port.
    • Transmit audio and video over a single cable with the DVI-HD-xx-MM male DVI-D to male HDMI cable.
  • Supports Ultra-HD 4Kx2K resolutions to 3840x2160 (24Hz and 30Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Compliant with DVI 1.0, HDMI 1.4a and HDCP 1.3 standards.
  • Supports the DDC2B protocol.
  • Cascade multiple units to increase the number of displays connected.
  • EDID learning for the support of any DVI display device.
  • Ideal for digital signage, tradeshows, or classrooms where high quality video on multiple monitors is needed.
Video Input
  • Compatible with a computer or HDTV video source (satellite receiver, DVD player, etc) with DVI or HDMI output (use DVI-HD-xx-MM to connect an HDMI source).
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Female DVI-I connector.
  • Signal type: single link digital DVI or HDMI
  • HDCP compliant
Video Output
  • Female DVI-I connectors.
  • Signal type: single link digital DVI or HDMI.
  • Supported video output resolutions:
    • Ultra-HD4Kx2K resolutions (3840x2160 @ 24/30Hz)
    • 2K Cinema (2048x1080 @ 60Hz)
    • HDTV resolutions to 1080p
    • Up to 1920x1200 (WUXGA)
  • HDCP compliant
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter. (Country-specific AC adapter included.)
Dimensions
  • WxDxH (in): 4.25x3.87x1.09 (108x98x28 mm)
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -22 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Warranty
  • Two years
Cables
  • One 3-foot single link DVI-I male-to-male cable included.
  • Use DVI-HD-xx-MM to connect an HDMI source or display (not included).
Compatible NTI Products
  • Combine NTI's video splitters and extenders for complex applications
    • Low-Cost HDMI Over Gigabit IP Extender
      (ST-IPHD-LC)
      • Only supports HDTV resolutions to 1080p.

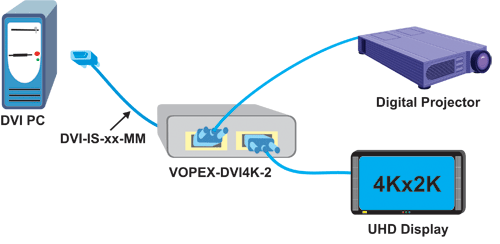

Application Drawings

  • 4K DVI/HDMI Video Splitter
    4K DVI/HDMI Video Splitter

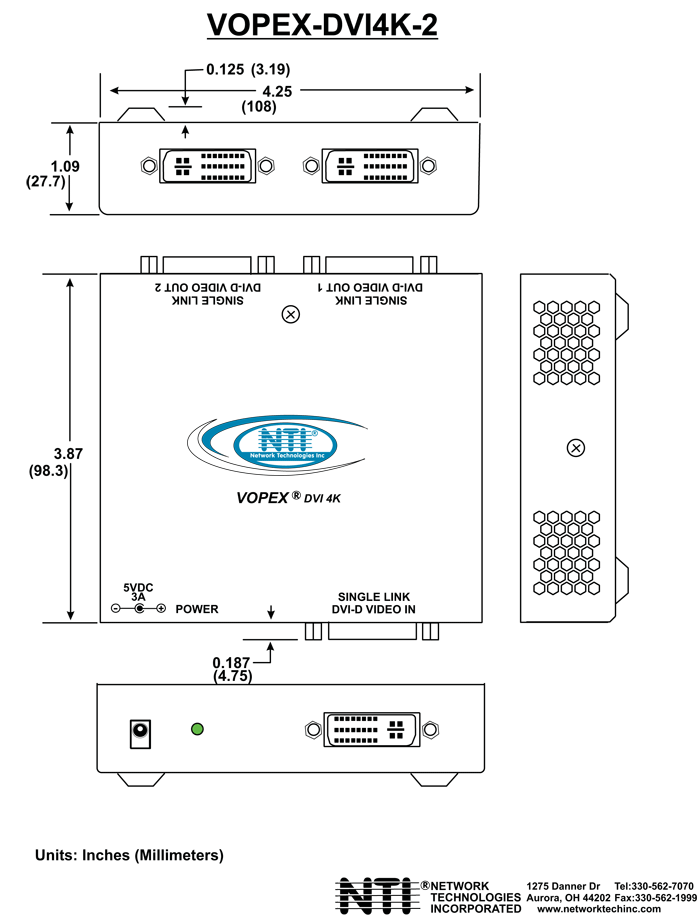

CAD Drawings

  • VOPEX-DVI4K-2
    CAD Drawing for VOPEX-DVI4K-2

4K DVI/HDMI Video Splitter

NTI Part # # of Ports Price Quote Buy
VOPEX-DVI4K-2 2 $155.00

DVI-I Male to Male Single Link Extension Cable

NTI Part # Length Price Quote Buy
DVI-IS-6-MM 6 feet $10.35
DVI-IS-15-MM 15 feet $16.60

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00
