Environment Monitoring System Temperature Sensors

Environmental Sensors compatible with ENVIROMUX-2D, ENVIROMUX-5D and ENVIROMUX-16D

Temperature Sensors

Probe-Style Temperature Sensor

Probe-Style Temperature Sensor
ENVIROMUX-STSM-E7

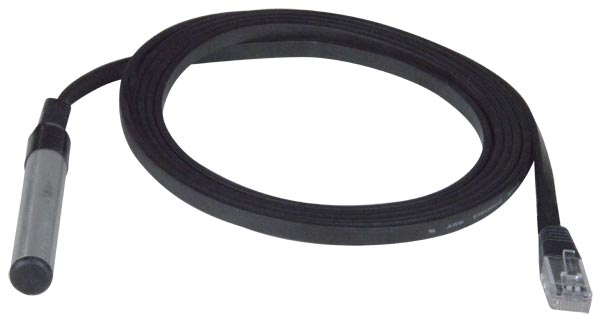

  • ENVIROMUX-STSMA-E7 - Aluminum Probe-Style Temperature Sensor
  • For use with ENVIROMUX-2D/5D/16D.
    • ENVIROMUX-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with ENVIROMUX-SEMS-16(U).
  • Applications from -4 to 185°F (-20 to 85°C).
  • High resistance to external influences on the cable due to digital output signal.
  • Temperature accuracy:
    • ±1.26°F (±0.70°C) for -4 to 41°F (-20 to 5°C).
    • ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
  • Sensor is available in a plastic or aluminum probe-style enclosure.
    • ENVIROMUX-STSM-E7: ABS Plastic sensor housing with vent openings for efficient environmental temperature sensing.
    • ENVIROMUX-STSMA-E7: Aluminum probe for added thermal conductivity (applications where surface temperature is needed).
  • Length: 7 feet.
  • Includes an RJ45 coupler to extend the sensor up to 1000 feet (305 m) using CATx cable (minimum 24AWG).
  • MTBF: 3,904,220 hours.
  • Current consumption: 20mA @ 12VDC.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS.
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
NTI Part # Length Enclosure Price Quote Buy
ENVIROMUX-STSM-E7 7 ft Plastic $52.00
ENVIROMUX-STSMA-E7 7 ft Aluminum $80.00

Temperature Sensor

ENVIROMUX-STS - Temperature Sensor
ENVIROMUX-STS
  • Applications from 32 to 122°F (0 to 50°C).
  • Accurate to within ±0.9°F (±0.5°C).
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • RJ45 connector.
  • Voltage Supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • MTBF: 3,784,839 hours.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Compatible with ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
NTI Part # Price Quote Buy
ENVIROMUX-STS $50

Low-Cost Precision Temperature Sensor, 14 to 140°F ( -10 to 60°C)

Low-Cost Precision Temperature Sensor, 32 to 140°F (0 to 60°C)
ENVIROMUX-STS-PRC
  • Applications from 14 to 140°F ( -10 to 60°C).
  • Accurate to within ±0.2°F (±0.1°C).
  • High resistance to external influences on the cable due to digital output signal.
  • RJ45 connector.
  • Voltage Supply: 5VDC
  • Current Consumption: 20mA
  • Communication type: RS485
  • Data rate: 96kbps
  • Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
  • MTBF: 2,465,437 hours.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Compatible with ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References

NTI Part # Price Quote Buy
ENVIROMUX-STS-PRC $155.00

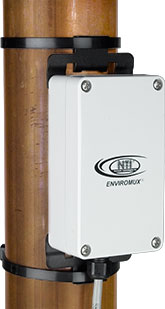

Pipe Temperature Sensor

ENVIROMUX-STSP-7 Pipe Temperature Sensor
ENVIROMUX-STSP-7
  • Mount to the outside of a thin walled steel, copper, or aluminum pipe (up to 1/4" wall).
  • Copper contact transmits surface temperature to thermal sensor.
  • Weatherproof enclosure designed to IP65 specifications.
  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±1.0°F (±0.5°C).
  • MTBF: 3,540,911 hours.
  • Response time: <1 minute for temperature changes of ±2°F.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Self centering mounting bracket available for 1-3" (25 mm) diameter pipe, and 3-6.5" (76 mm) diameter pipe (included).
    • Included adjustable cable ties secure mounting bracket to pipe.
  • Length: 7 feet.
  • Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
  • Current consumption: 14mA @ 5VDC.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Compatible with ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS.
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
NTI Part # Length Price Quote Buy
ENVIROMUX-STSP-7 7 ft $86.00

Strap-On Pipe Temperature Sensor, Spring-Loaded

Strap-On Pipe Temperature Sensor, Spring-Loaded
ENVIROMUX-STSP-SL-7
  • Mount to the outside of an insulated metal pipe (up to 1/4" wall).
    • Cable ties secure sensor to pipe diameters from 5" up to 14".
    • Mounts with insulation thicknesses from 0.5" - 2.5".
  • Copper contact transmits surface temperature to thermal sensor.
    • Spring-loaded contact enables minimal removal of pipe insulation.
  • NEMA 1 and IP20 rated metal enclosure
  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±1.0°F (±0.5°C).
  • Response time: <1 minute for temperature changes of ±2°F.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • MTBF: 3,540,911 hours.
  • Length: 7 feet.
  • Includes an RJ45 coupler to extend the sensor up to 1,000 feet using CATx cable (minimum 24AWG).
  • Current consumption: 14mA @ 5VDC.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Compatible with ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS.
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
NTI Part # Length Price Quote Buy
ENVIROMUX-STSP-SL-7 7 ft $82.00

Outdoor Temperature Sensor

ENVIROMUX-STS-O Outdoor Temperature Sensor
ENVIROMUX-STS-O
  • Applications from -40 to 185°F (-40 to 85°C).
  • Accurate to within ±0.9°F (±0.5°C).
  • Weatherproof enclosure.
  • High resistance to external influences on the cable due to digital output signal.
  • Re-calibration is not necessary after initial set-up.
  • Quick release waterproof RJ45 connector.
  • Supports CAT5/5e/6 cable up to 1,000 ft. (305 m).
  • Dimensions WxDxH (in): 4.53x2.56x2.13 (115x65x54 mm).
  • MTBF: 1,860,032 hours.
  • Current consumption: 14mA @ 5VDC.
  • Powered by ENVIROMUX-2D/5D/16D.
  • Compatible with ENVIROMUX-2D/5D/16D.
  • Regulatory approvals: CE, RoHS
  • Compatible with ENVIROMUX-FSC Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
NTI Part # Price Quote Buy
ENVIROMUX-STS-O $65.00
