Environment Monitoring System Temperature/Humidity Sensors
Environmental Sensors compatible with ENVIROMUX® E-2D, E-5D and E-16D
Temperature/Humidity Sensors
Probe-Style Temperature/Humidity/Dew Point Sensor
E-STHSM-E7
- For use with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity (operating and storage).
- High resistance to external influences on the cable due to digital output signal.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- Length: 7 feet.
- Includes an RJ45 coupler to extend the sensor up to 1000 feet (305 m) using CATx cable (minimum 24AWG).
- MTBF: 4,195,068 hours.
- Current consumption: 7mA @5VDC.
- Powered by E-2D/5D/16D.
- Communication type: RS485
- Regulatory approvals: CE, RoHS.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
Downloads & References
- Installation Manual
- CAD Drawing
- E-STHSM-E7.step – 3D image file
Temperature/Humidity/Dew Point Sensor
E-STHSB
- Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
- High resistance to external influences on the cable due to digital output signal.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- RJ45 connector.
- Voltage supply: 5VDC
- Current Consumption: 20mA
- Communication type: RS485
- Data rate: 96kbps
- MTBF: 4,134,102 hours
- Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References

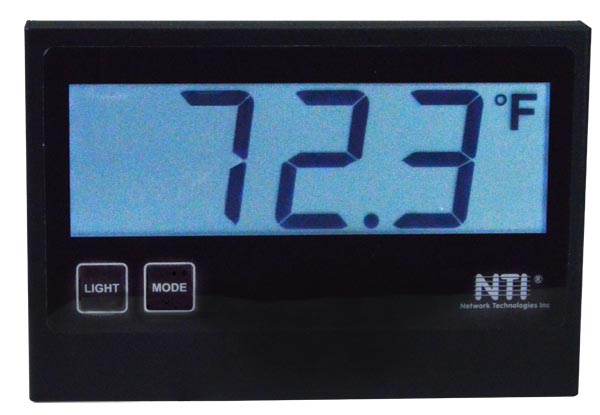

Temperature/Humidity Sensor with 3-Digit 7-Segment LCD Display – 2" Character Height
To View Sensor Value, Name/Location, Unit of Measurement, and Alert Status for ALL Sensors Connected to
E-2D/5D/16D, check out NTI's Programmable LED Sensor Display
E-2D/5D/16D, check out NTI's Programmable LED Sensor Display
E-STHS-LCDW
- Use to detect and view real-time value of the sensor's temperature or humidity reading.
- Three-digit, seven-segment display with °F, °C and % indicators.
- Character height: 2 in (50mm).
- LCD display window dimensions WxH: 6.88x2.29 in (175x58mm).
- Use the touch-sensitive Mode button on the LCD display to alternate between temperature and humidity.
- Use the touch-sensitive Light button to activate an LED backlight for a clear view in dark environments.
- Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% non-condensing relative humidity.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Wall mountable.
- Dimensions WxDxH: 8x1.03x5.4 in (203x26x137 mm).
- Supports CAT5/5e/6/6a cable (24 AWG) up to 150 ft (45.7 m) (not included).
- If a longer cable is used (up to 1,000 ft), the MODE button will not work when the display is illuminated by the LIGHT button.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Max current consumption: 56mA @ 5VDC
- Powered by E-2D/5D/16D.
- MTBF: 3,491,762 hours
- Communication type: RS485
- Regulatory approvals:
- CE, RoHS.
- TAA compliant.
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
Downloads & References
Carbon Dioxide (CO2)/Temperature/Humidity/Dew Point Sensor
E-CO2-THS
- Measures CO2 in a range of 400 to 2,000 ppm.
- Accuracy: ±(5% of reading + 50ppm) at 77°F (25°C)
- Sensing element: Single Beam Non-Dispersive Infrared (NDIR)
- Measures temperature from 14 to 140°F (-10 to 60°C) and relative humidity from 0 to 100%.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for 59 to 95°F (15 to 35°C).
- ±2.7°F (±1.50°C) for 14 to 140°F (-10 to 60°C).
- Humidity accuracy:
- ±6% RH for 20 to 65% RH at 59 to 95°F (15 to 35°C)
- ±9% RH for 0 to 100% RH at 14 to 140°F (-10 to 60°C)
- Temperature accuracy:
- Supports dew point measurement.
- RJ45 connector.
- Voltage supply: 5VDC
- Communication type: RS485
- Data rate: 96kbps
- High resistance to external influences on the cable due to digital output signal.
- Supports CAT5/5e/6/6a cable (24 AWG) up to 50 ft (15 m) (not included).
- Use E-RJ8-RS485 Sensor Port Hub to extend the sensor up to 1,000 feet (305 m) from the ENVIROMUX unit via CAT5/5e/6 cable.
- Use E-FSC Fiber Converter/Extender to extend the sensor up to 1.2 miles (2 km) from the ENVIROMUX unit via fiber optic cable.
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Regulatory approvals: CE, RoHS
Downloads & References

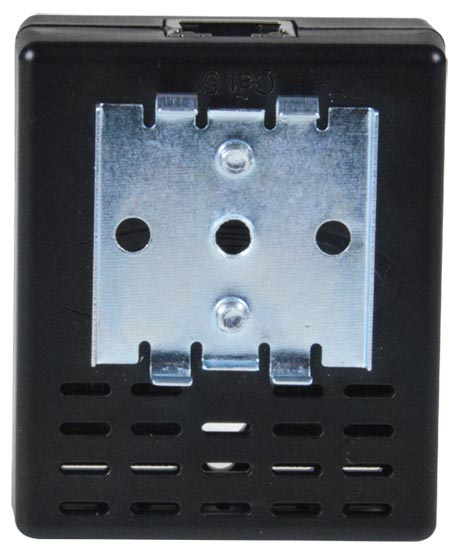

Temperature/Humidity/Dew Point Sensor, DIN Mounted
E-STHSB-D
- Applications from -4 to 185°F (-20 to 85°C) and 0 to 90% relative humidity.
- High resistance to external influences on the cable due to digital output signal.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- ±1.62°F (±0.90°C) for 140 to 185°F (60 to 85°C).
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- RJ45 connector.
- Voltage Supply: 5VDC
- Current Consumption: 20mA
- Communication type: RS485
- Data rate: 96kbps
- DIN mountable
- Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Not compatible with E-SEMS-16(U).
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
Low-Cost Precision Temperature/Humidity/Dew Point Sensor, 14 to 140°F (-10 to 60°C)
E-STHS-PRC
- Applications from 14 to 140°F ( -10 to 60°C) and 10 to 80% relative humidity.
- Accurate to within ±0.2°F (±0.1°C) and ±1.8% relative humidity.
- Supports dew point measurement.
- High resistance to external influences on the cable due to digital output signal.
- RJ45 connector.
- Voltage Supply: 5VDC
- Current Consumption: 20mA
- Communication type: RS485
- Data rate: 96kbps
- Supports CAT5/5e/6/6a cable (24 AWG) up to 1,000 ft (305 m) (not included).
- Powered by E-2D/5D/16D.
- Compatible with E-2D/5D/16D.
- E-2D: only compatible with Rev C units (features two power inputs).
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
Fan-Aspirated Temperature/Humidity/Dew Point Sensor, Low Self-Heating
E-STHS-LSH
- Fan-Aspirated Temperature/Humidity Sensor compensates for parasitic heating due to electrical power dissipation and/or exposure to solar radiation.
- Internal fan constantly draws air in over the sensor, providing highly accurate temperature readings.
- Ideal for installations where steep temperature gradients are common, and where there is little to no air flow.
- Use in freezers where there is intermittent air flow.
- Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- Inflation due to self-heating: <0.9°F (0.5°C) typical, 2.3°F (1.3°C) max.
- Humidity accuracy (at 77°F/25°C):
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- Aspiration rate: 1 cfm (0.2 ft/s)
- Dimensions (including mounting brackets) WxDxH (in): 2.19x2.87x1.41 (56x73x36 mm)
- Communication type: RS485
- Compatible with E-2D/5D/16D.
- Powered by E-2D/5D/16D.
- Current consumption: 17mA @ 5VDC and 25mA@12VDC
- MTBF: 423,371 hours
- Regulatory approvals: CE, RoHS
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
Downloads & References
- Installation Manual
- E-STHS-LSH.step – 3D image file
