Environment Monitoring System Sensor Accessories
Sensor hub compatible with ENVIROMUX® E-2D, E-5D, and E-16D

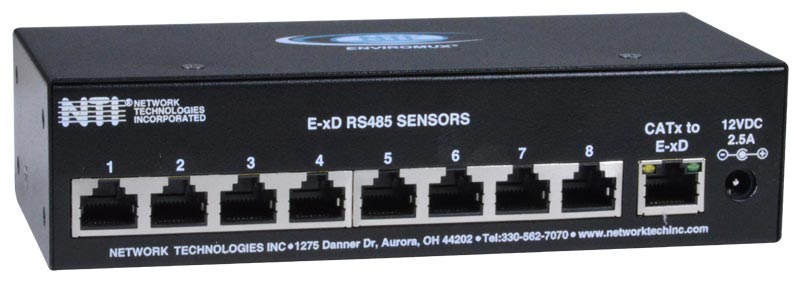

RJ45 RS485 Sensor Expander
RJ45 RS485 Sensor Port Hub
E-RJ8-RS485
- Adds eight RJ45 RS485 sensors to the E-2D, E-5D, or E-16D.
- Each E-16D supports up to three E-RJ8-RS485 – allowing for a total of 37 RJ45 RS485 sensors to be connected to the E-16D.
- Each E-5D supports up to two E-RJ8-RS485 – allowing for a total of 19 RJ45 RS485 sensors to be connected to the E-5D.
- Each E-2D supports one E-RJ8-RS485 – allowing for a total of 9 RJ45 RS485 sensors to be connected to the E-2D.
- When cascading E-xD units together, only the master unit supports E-RJ8-RS485.
- Powered by 12VDC 2.5A external power supply (included).
- Compatible with E-2D/5D/16D.
- Interfaces with the E-2D/5D/16D via the RJ45 sensor port.
- Supports CAT5/5e/6 cable up to 1000 feet (305 m) between the E-2D/5D/16D and hub.
- Sensor cable lengths connected to the hub are as specified per sensor.

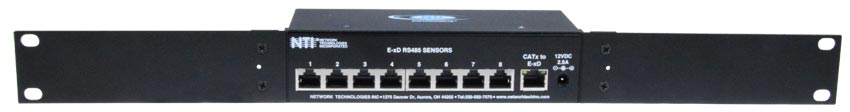

- Available options: desktop unit with wall mounting brackets, DIN mount unit, 1RU rackmount unit.
- Dimensions WxDxH: 6.82x3x1.72 in (173x76x44 mm)
- Regulatory approvals: CE, RoHS
- Operating temperature: 32 to 158°F (0 to 70°C)
- Storage temperature: -4 to 158°F (0 to 70°C)
- Compatible with E-FSC Fiber Converter/Extender.
- Use to extend sensor up to 1.2 miles (2 km) from the ENVIROMUX unit.
Downloads & References
- Installation Manual
- Data Sheet
- E-RJ8-RS485.step — 3D image file
Compatible RJ45 RS485 Sensors
| NTI Part # | Description |
|---|---|
| E-ACDCLM | AC & DC Voltage & Current Monitor |
| E-ACLM-3P480 | 3-Phase AC Power Monitor |
| E-ACLM-P-xx-V2 | AC Power Monitors with Relay |
| E-ACLM-V-V2 | AC Dual Voltage Monitor |
| E-ALDS | Addressable Leak Detection Sensor |
| E-AV-LC-7 | Low-Cost Air Velocity Sensor |
| E-CO2-THS | Carbon Dioxide (CO2)/Temperature/Humidity/Dew Point Sensor |
| E-DCLM-6 | DC Line Monitor |
| E-DI16DO16 | Digital Input/Output Expander (Open-Collector Outputs) |
| E-DI16DOR16-V2 | Digital Input/Output Expander (Normally-Open Relay Contact Outputs) |
| E-DUST | Optical Dust Sensor |
| E-LIS | Light Intensity Sensor |
| E-NLS | Noise Level Sensor |
| E-PLSD | Programmable LED Sensor Display |
| E-S420MA-24V | 4-20mA Sensor Converter |
| E-S5VDC | 5VDC Sensor Converter |
| E-S60VDC | DC Voltage Monitor |
| E-STHSB | Temperature/Humidity/Dew Point Sensor |
| E-STHS-LCDW | Temperature/Humidity Sensor with 3-Digit 7-Segment LCD Display |
| E-STHS-LSH | Fan-Aspirated Temperature/Humidity/Dew Point Sensor, Low Self-Heating |
| E-STHS-PRC | Low-Cost Precision Temperature/Humidity Sensor |
| E-STHSM-E7 | Probe-Style Temperature/Humidity/Dew Point Sensor |
| E-STS | Temperature Sensor |
| E-STS-O | IP65 Outdoor Temperature Sensor |
| E-STSM-E7 | Probe-Style Temperature Sensor |
| E-STSP-7 | Pipe Temperature Sensor |
| E-STSP-SL-7 | Strap-On Pipe Temperature Sensor, Spring-Loaded |
