Programmable LED Sensor Display compatible with ENVIROMUX® E-2D, E-5D and E-16D

Programmable LED Sensor Display

View sensor value, name/location, unit of measurement, and alert status for any/all sensors connected to E-2D/5D/16D

Programmable LED Sensor Display

E-PLSD

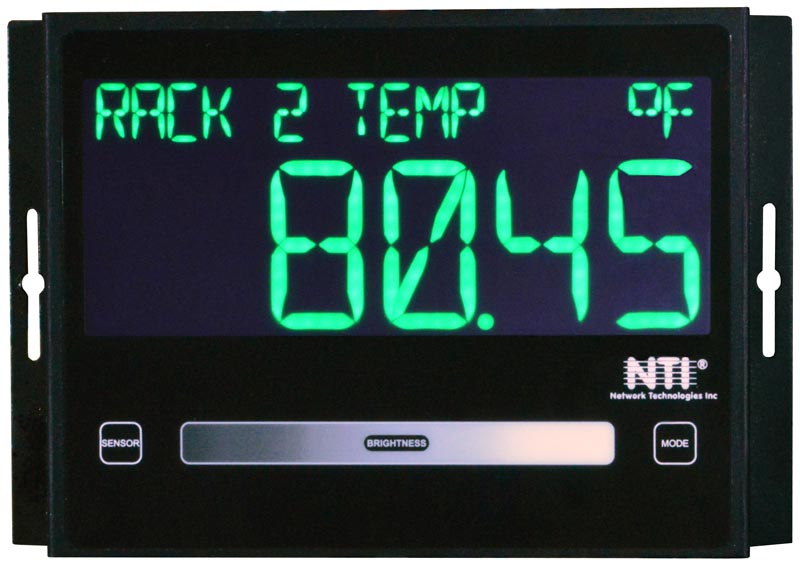

  • E-PLSD – Bright Green LEDs for Normal Status

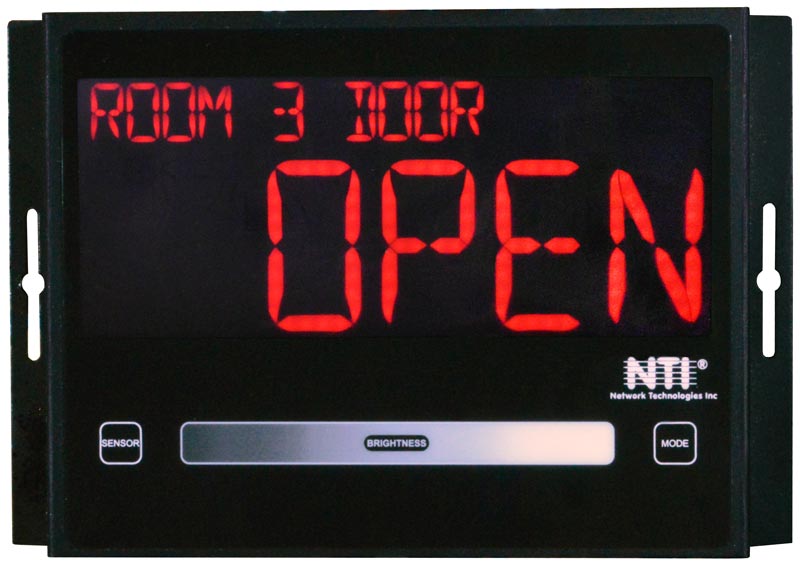

  • E-PLSD – Bright Red LEDs for Alarm Status
  • E-PLSD – Program to display sensor name/location; indicates unit of measure; displays sensor value reading
  • Displays the data from any or all NTI ENVIROMUX® sensors configured on an
    E-2D/5D/16D, including cascaded units – internal sensors, external sensors, digital inputs, output relays, IP devices, SNMP sensors, power supplies, events, and smart alerts.
  • 14-segment LED characters.

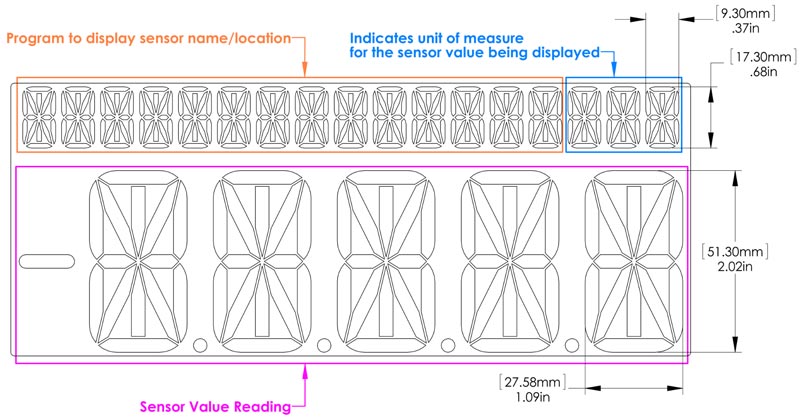

    • LED display window dimensions WxH: 7.62x3.09 in (194x79 mm)
    • Five characters for sensor value reading.
      • Character dimensions WxH: 1.09x2.02 in (28x51 mm)
    • Fourteen characters for displaying sensor name/location.
      • Customizable through the E-2D/5D/16D web interface.
      • Character dimensions WxH: 0.37x0.68 in (9x17 mm)
    • Three characters for indicating unit of measure for the sensor value being displayed.
      • Character dimensions WxH: 0.37x0.68 in (9x17 mm)
    • The LED display characters will be green when sensor status is normal, yellow when a sensor is in non-critical alert (warning), and red when in critical alert status (alarm).
  • Touch-sensitive buttons.
    • Use the "SENSOR" button to manually go to the next sensor to be displayed.
      • It stops auto-scan for 30 seconds, and then resumes auto-scan.
    • "BRIGHTNESS" adjusts the LED intensity/color.
    • "MODE" switches C to F for temperature sensors.
  • Configure/program the LED display using the E-2D/5D/16D web interface.
    • Drag and drop feature for user to select desired sensors to be shown on the LED display.
      • Allows user to set sensor order to be displayed.
    • User-selectable display duration for each sensor (in seconds) before it switches to the next sensor status being displayed (AKA "Scanning")
      • Default: 10 seconds
    • Enable sensors in warning/alarm status to be the only ones displayed/rotated.
      • Will rotate/scan the sensors in normal status once all sensors in warning/alarm have been cleared.
    • Sensor configuration pages feature sensor nickname field – nickname is shared with any/all LED displays.
      • Nickname supports 14 characters, that way sensor name does not scroll.
      • If no nickname is entered, the LED Display will use the description, which will scroll if longer than 14 characters.
        • User-selectable scrolling time.
          • Default: 300ms per character
  • One female RJ45 port for connecting an E-TRHM-7 Temperature/Humidity Sensor
    • E-TRHM-7 Sensor can be extended up to 500 feet from E-PLSD using 24 AWG CAT5/5e/6 cable.
    • Applications from -4 to 140°F (-20 to 60°C) and 0 to 90% relative humidity.
    • Temperature accuracy:
      • ±0.90°F (±0.50°C) for -4 to 14°F (-20 to -10°C).
      • ±0.72°F (±0.40°C) for 14 to 140°F (-10 to 60°C).
    • Humidity accuracy (at 86°F/30°C):
      • 10 to 80% relative humidity, ±3%
      • 80 to 90% relative humidity, ±4%
  • Compatible with E-2D/5D/16D.
    • Interfaces with the E-2D/5D/16D via the RJ45 sensor port.
    • Supports CAT5/5e/6/6a cable (24 AWG) up to 1000 feet (305 m) (not included).
  • Powered by 24VDC 1.5A external power supply (included).
    • Typical Load: 24V @ 50 to 150mA
    • Maximum Load: 24V @ 1.0A
  • Communication type: RS485
  • Wall mountable.
  • Dimensions WxDxH: 9.96x1.08x6.72 in (253x28x170 mm).
  • Operating and storage temperature: -4 to 140°F (-20 to 60°C)
  • Operating/storage relative humidity: 10 to 90% non-condensing RH.
  • Regulatory approvals:
    • CE, RoHS.
    • TAA compliant.
  • Compatible with E-SER-2FOxMxx Fiber Converter/Extender.
    • Use to extend sensor up to 1.2 miles (2km) from the ENVIROMUX unit.
NTI Part # Price Quote Buy
E-PLSD $725.00
