Environment Monitoring System Spot Leak Detection Sensors

Liquid & Water Detection Sensors compatible with ENVIROMUX-MINI-LXO and ENVIROMUX-MICRO

Spot Leak Detectors

Spot Liquid Detector, Point Leak Detection Sensor

ENVIROMUX-LD-SPDT Spot Liquid Detector, Point Leak Detection Sensor
ENVIROMUX-LD-SPDT-P
  • For detecting water presence and warning of flooding.
  • Compatible with ENVIROMUX-MINI-LXO and ENVIROMUX-MICRO.
  • Features gold-plated probes and microchip technology for dependable detection of conductive liquids.
  • SPDT alarm contacts
  • Weatherproof enclosure
  • LEDs for power and alarm indication
  • Ideal solution for sensing leaks under a raised computer floor or air conditioning drip pans.
  • Use in large-scale network control centers, data centers, server rooms/closets, unattended remote shelters, mechanical equipment rooms, sensitive areas with overhead piping, industrial process control rooms, etc.
  • Adjustable detection level.
    • Probe height adjustable 0" to 1.5" (0 to 38mm)
  • Current consumption: 10mA typical, 30mA maximum @ 12VDC.
  • Maximum cable length: 1000 ft (305m)
  • Dimensions WxDxH: 3.75x4.5x4.23 in (95x114x107 mm)
  • Includes 12V/1A power supply.
  • Regulatory approvals: CE
Downloads & References
NTI Part # Price Quote Buy
ENVIROMUX-LD-SPDT-P $225.00

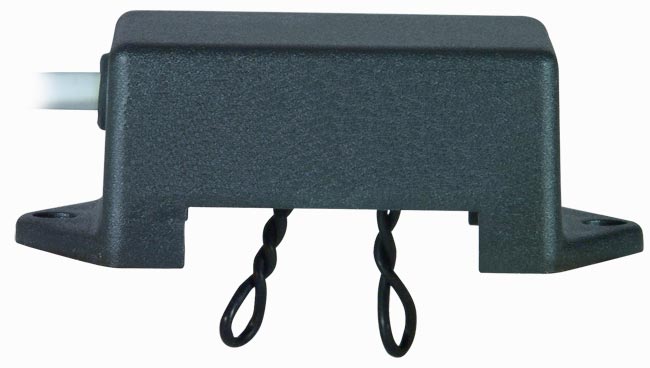

Compact-Size Spot Liquid Detector, Point Leak Detection Sensor

ENVIROMUX-LD-SPDT Compact-Size Spot Liquid Detector, Point Leak Detection Sensor
ENVIROMUX-SLDO-14
  • Compact-Size Spot Liquid Detector, Point Leak Detection Sensor
  • Use to detect fluids in confined areas, such as condensation drip pans.
  • Compatible with ENVIROMUX-MINI-LXO and ENVIROMUX-MICRO.
  • SPDT alarm contacts
  • One generic relay output
  • No exposed metal sensing posts – nothing to rust or corrode
  • Potted electronics — functions when submerged in water
  • Adjustable detection level.
    • Probe height adjustable 0" to 0.75" (0 to 19mm)
  • Dimensions WxDxH: 1.55x1.0x2.0 in (39x25x51 mm)
  • Cable length: 14 feet
    • Maximum cable length: 1000 ft (305m)
  • ENVIROMUX-SLDO-14 includes 24V/0.5A US power supply.
  • ENVIROMUX-SLDO-14-240VTR includes 240/208/120 to 24 VAC power transformer and country-specific line cord.
  • Regulatory approvals: CE, RoHS
Downloads & References
NTI Part # Included Power Supply Price Quote Buy
ENVIROMUX-SLDO-14 24V/0.5A US power supply $135.00
ENVIROMUX-SLDO-14-240VTR 240/208/120 to 24 VAC power transformer and country-specific line cord $165.00

Spot Liquid Detector with Built-In Visual & Audible Alarm

ENVIROMUX-SLDO-A Compact-Size Spot Liquid Detector, Point Leak Detection Sensor
ENVIROMUX-SLDO-AP
  • Spot Liquid Detector with Built-In Visual & Audible Alarm
  • Use to detect conductive fluids in confined areas
    • Place the sensor on a flat surface under HVAC equipment, dishwashers, washing machines, refrigerators, compressors, or electrical switchgear rooms and other potential leakage areas.
  • Compatible with ENVIROMUX-MINI-LXO and ENVIROMUX-MICRO.
  • Water level detection range: 0.03 to 0.53" (0.79 to 13 mm).
  • DPDT alarm contacts.
  • Audible alarm signal: 85 dB at 1 foot distance.
  • Red LED for visual alarm signal.
  • Green LED for power
  • Current consumption: 30mA typical, 85mA maximum @ 12VDC.
  • Dimensions WxDxH: 2x4.13x0.19 in (51x105x30 mm).
  • Includes adjustable mounting bracket attached via adhesive strips or two screws.
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Includes 12V/1A power supply.
  • Cable length: 4.9 ft (1.5 m)
    • Maximum cable length: 1000 ft (305m)
  • Regulatory approvals: CE, RoHS.
Downloads & References
NTI Part # Price Quote Buy
ENVIROMUX-SLDO-AP $110.00

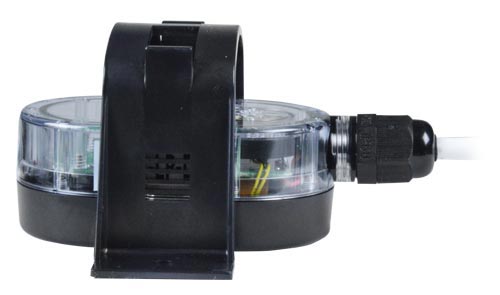

IP68 Submersible Spot Liquid Detector

ENVIROMUX-SLDO-IP68-P IP68 Submersible Spot Liquid Detector
ENVIROMUX-SLDO-IP68-P
  • ENVIROMUX-SLDO-IP68-P IP68 Submersible Spot Liquid Detector
  • Use to detect conductive fluids in confined areas
    • Place the sensor on a flat surface under HVAC equipment, dishwashers, washing machines, refrigerators, compressors, or electrical switchgear rooms and other potential leakage areas.
  • Water level detection range: 0.03 to 0.53" (0.79 to 13 mm).
  • DPDT alarm contacts.
  • Red LED for visual alarm signal.
  • Green LED for power
  • Current consumption: 30mA typical, 85mA maximum @ 12VDC.
  • Includes 12V/1A power supply.
  • Dimensions WxDxH: 2x4.13x0.19 in (51x105x30 mm).
  • Includes adjustable mounting bracket attached via adhesive strips or two screws.
  • Operating temperature: 32 to 122°F (0 to 50°C).
  • Cable length: 4.9 ft (1.5 m)
    • Maximum cable length: 1000 ft (305m)
  • Enclosure rating: NEMA 6P (IP68) submersible.
  • Regulatory approvals: CE, RoHS.
Downloads & References
NTI Part # Price Quote Buy
ENVIROMUX-SLDO-IP68-P $130.00
